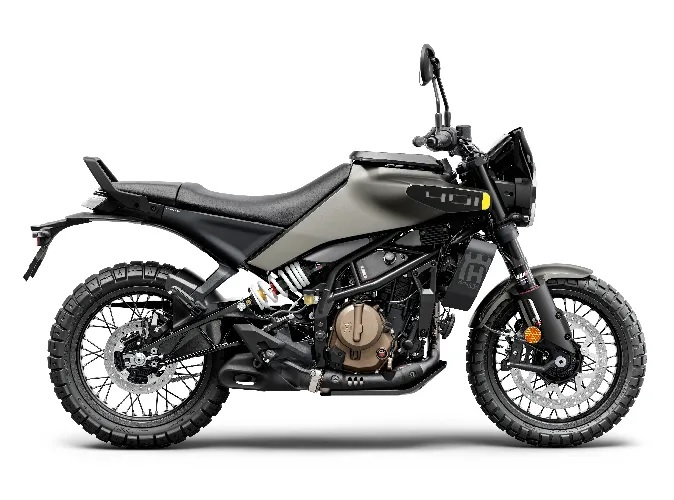

Svartpilen-401
| Engine |
Four - stroke, DDHC 8 Valve, Parallel Twin (BSIII) |
| Displacement |
649 cc, Max Power 72.1 PS @ 8500 RPM, 64 NM Torque @ 7000 RPM |
| Bore X Stroke |
83.0 x 60.0 mm |
| Compression Ratio |
10.8 : 1 |
| Fuel System |
Digital Fuel Injection, Keihin 38 mm Dual Throttle bodies |
| Fuel Type / Minimum Octane Rating |
Unleaded petrol / RON 91 |
| Ignition |
TCBI with Electronic Advance |
| Transmission |
6 - Speed |
| Final Drive |
Sealed O - Ring Chain |
| Cooling System |
Liquid Cooled |
| Frame Type |
Perimeter, high-tensile steel |
| Rake / Trail |
25 / 106 mm |
| Front Tyre |
Size 120 / 70-17 ZRI7M / C (58W) |
| Rear Tyre |
Size 160 / 60 - 17 ZRI7M / C (69W) |
| Wheelbase |
1410 mm |
| Ground Clearance |
130 mm |
| Front Suspension / Wheel Travel |
41 mm Telescopic Fork / 120 mm |
| Rear Suspension / Wheel Travel |
Single offset laydown Shock with 7 - step adjustable / 125 mm |
| Front Brakes |
Dual 300 mm Tripe Petal disc with two - piston calipers |
| Rear Brakes |
Single 220 mm Petal disc with single piston caliper |
| Fuel Capacity |
16 Litres |
| Seat Height |
805 mm |
| Kerb Weight |
211 kg |
| Overall Dimensions L x W x H |
2110 mm x 770 mm x 1180 mm |
